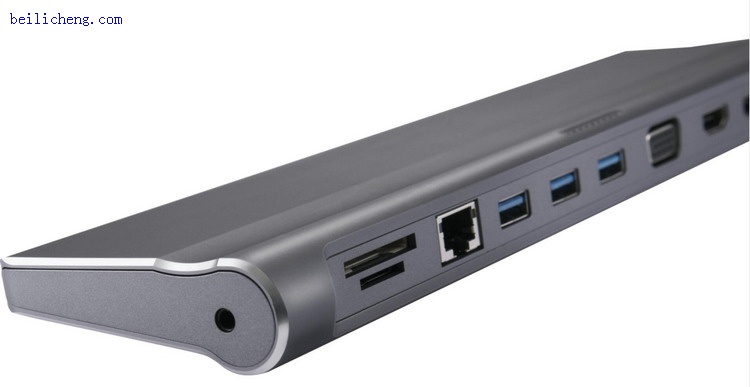

Type C Docking Station- BTCS9 |
|
Product name:Type C Docking Station- BTCS9 |
Item:Type C Docking Station- BTCS9 |
Details: |
USB3.1 Type C to 3*USB3.0+SD+RJ45+DP+HDMI
VGA+Typec(PD)+Audio+Lock hole
Docking Station(brand New model )full-features PD
1.Support HDMI Female, Display Port Female, VGA Female, USB-C Female, USB 3.0 Female,
Gigabit Ethernet, Stereo, SD Card, Micro SD Card, USB-C interface.
2.Support USB 3.0 super speed (5Gbps) transmission, downward compatible USB2.0,1.0
3.For HDMI, VGA, Display-Port, only support two of them at the same time(VGA+DP/HDMI+DP)
one HDMI resolution up to 3840x2160P/30HZ.
one Display Port resolution up to 3840x2160P/30HZ.
one VGA resolution up to 1920x1200/60HZ.
DP + HDMI displayport at the same time, max up to 4K/30HZ
DP + VGA displayport at the same time, max up 1080p/60HZ
HDMI+VGA displayport at the same time,can't display simultaneously(Not recommneded).
4.Support 1000Mbps band width for RJ45 port.
5.USB-C Female support full-features of PD ( Up to 87W :20V/4.35A)
( USB-C male port for Macbook or Google new Chromebook Pixel and other USB-C supported devices)
6.Stereo port supports both microphone and headphone.
7.USB-C Male interfaces support plug and play, hot swap.
8.Support SD/SDHC/SDXC/TF(Version 3.0).
Support Secure Digital v3.0 UHS-I (Reading speed max 70Mbps, Writing speed max 90Mbps)
Support Multi Media Card (MMC) specification
Support Micro SD/SDHC/SDXC (up to 128 GB)
9.LED indicators show the working status of the 9 interfaces except RJ45 .
10.Security Lock hole for safety
11.Cable length 15cm ,with TPE Jacket and grey PSS braid.
12.With heat radiating hole and anti-slip slot |
